0002473: Export diagrams as SVG

ID	Project	Category	View Status	Date Submitted	Last Update

0002473	CaseTalk Modeler	Diagrams	public	2020-04-30 12:56	2022-01-10 20:32

Reporter	Marco Wobben	Assigned To	Marco Wobben
Priority	normal	Severity	feature	Reproducibility	have not tried
Status	closed	Resolution	fixed
Target Version	Future	Fixed in Version	10.1

Summary	0002473: Export diagrams as SVG
Description	Exporting as bitmaps is already available, and WMF contains a pixelless format, but a SVG support would be great to get diagrams out of CaseTalk on an infinite resolution.
Tags	No tags attached.
Attached Files

CaseTalk Edition	unknown

Marco Wobben 2020-05-05 10:09 administrator ~0001632	https://developer.mozilla.org/en-US/docs/Web/SVG/Element/text

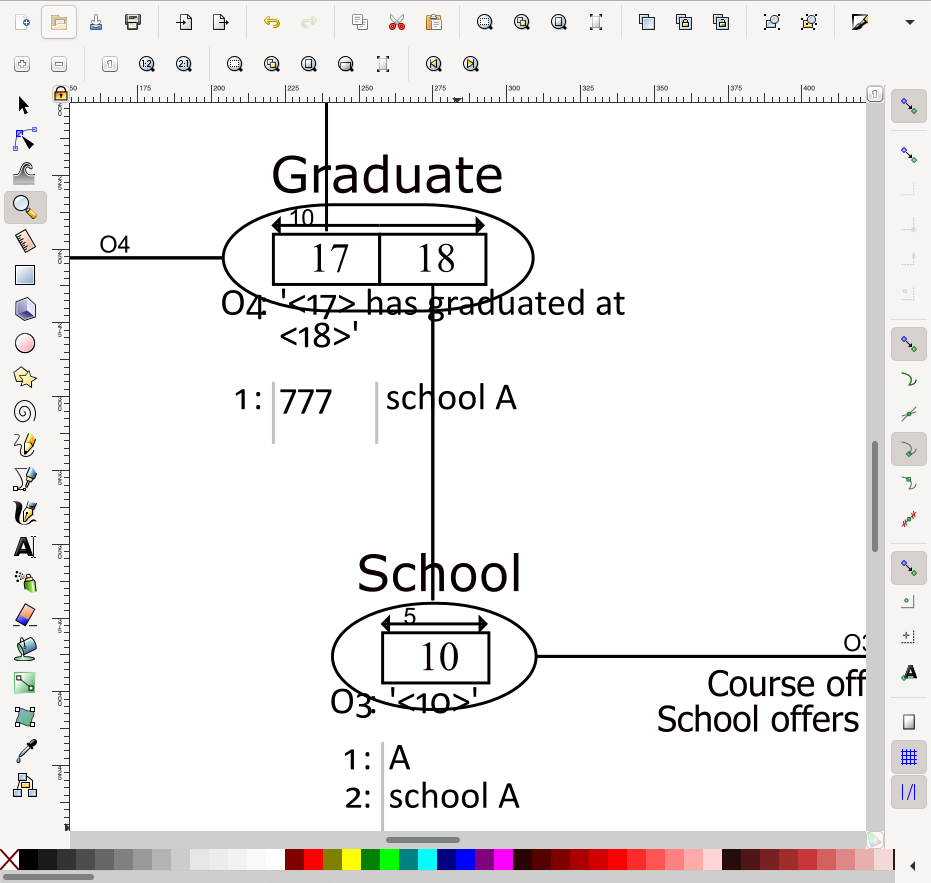

Marco Wobben 2020-05-08 10:38 administrator ~0001637	Early tests show an SVG output should be possible. An attachment shows how the SVG editor was able to open the export from CaseTalk. DiagramAsSVG.png (137,676 bytes) DiagramAsSVG.png (137,676 bytes)

Marco Wobben 2022-01-10 20:32 administrator ~0002318	Closing automatically, stayed too long in resolved state. Feel free to re-open with additional information if you think the issue is not resolved.

Date Modified	Username	Field	Change
2020-04-30 12:56	Marco Wobben	New Issue
2020-04-30 12:56	Marco Wobben	Status	new => assigned
2020-04-30 12:56	Marco Wobben	Assigned To	=> Marco Wobben
2020-05-05 10:09	Marco Wobben	Note Added: 0001632
2020-05-08 10:38	Marco Wobben	File Added: DiagramAsSVG.png
2020-05-08 10:38	Marco Wobben	Note Added: 0001637
2020-05-12 11:45	Marco Wobben	Status	assigned => resolved
2020-05-12 11:45	Marco Wobben	Resolution	open => fixed
2020-05-12 11:45	Marco Wobben	Fixed in Version	=> 10.1
2022-01-10 20:32	Marco Wobben	Note Added: 0002318
2022-01-10 20:32	Marco Wobben	Status	resolved => closed
