0001901CaseTalk ModelerDiagramspublic2018-10-11 13:032022-01-10 20:32
ReporterBCP Software Assigned ToBCP Software
PrioritynormalSeverityfeatureReproducibilitysometimes
Status closedResolutionfixed
Target VersionFutureFixed in Version11.1
Summary0001901: Draw generalized super types with arrow
DescriptionGeneralized Object Types are not always a supertype. Yet, when a Object Type is set to be, it should draw an subtype arrow when possible.
TagsNo tags attached.
CaseTalk Editionunknown

Relationships

related to 0001975 closedBCP Software OWL - Recognize generalized super types

Activities

BCP Software

BCP Software

2018-11-28 11:17

administrator   ~0001332

Last edited: 2018-11-28 11:23

 Current repository storage only allows object types to marked as a subtype if the playedbyrole is played by an object type. When a generalized object type is attached to that, this object type could be the supertype. There's no way to enable the indicator for that. Perhaps the generalized object type could receive a function to mark all connected object types to become subtypes?
BCP Software

BCP Software

2018-11-28 11:46

administrator   ~0001334

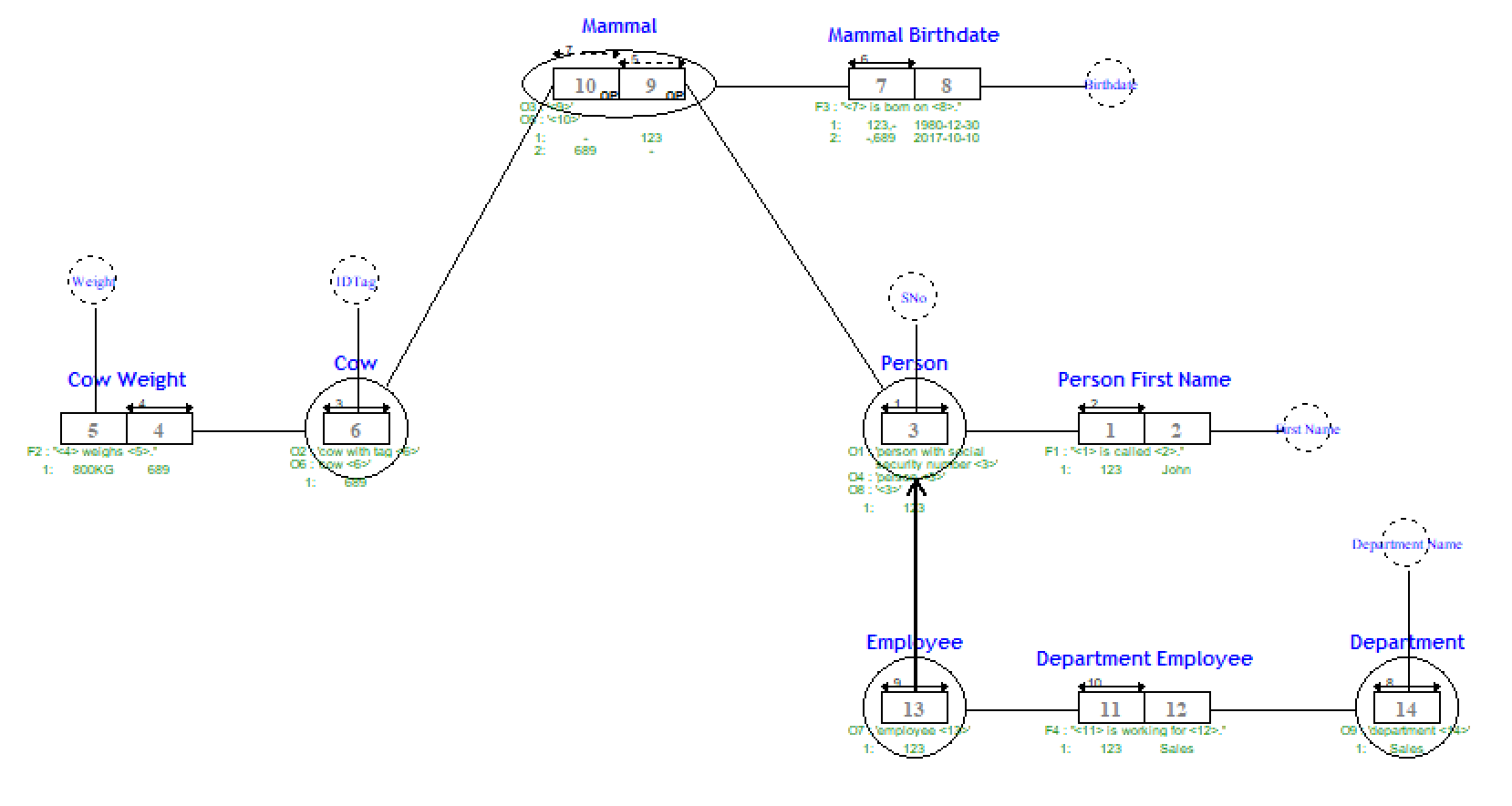

How to expand the repository and diagram style to support the abstract supertype.
(And add support for a TC over the subtypes.)
BCP Software

BCP Software

2022-01-10 20:32

administrator   ~0002282

Closing automatically, stayed too long in resolved state. Feel free to re-open with additional information if you think the issue is not resolved.
