0001892: Draw optional roles with dotted line

ID	Project	Category	View Status	Date Submitted	Last Update

0001892	CaseTalk Modeler	Diagrams	public	2018-10-04 11:18	2022-01-10 20:32

Reporter	BCP Software	Assigned To	BCP Software
Priority	normal	Severity	feature	Reproducibility	N/A
Status	closed	Resolution	fixed
Target Version	9.4.1	Fixed in Version	9.4.1

Summary	0001892: Draw optional roles with dotted line
Description	Optional roles can be indicated with the "OP" mark, using the diagram options. The solid line connecting the role to the PlayedByOT could be drawn dotted to indicate this optionality.
Tags	No tags attached.

CaseTalk Edition	unknown

Date Modified	Username	Field	Change
2018-10-04 11:18	BCP Software	New Issue
2018-10-04 11:18	BCP Software	Status	new => assigned
2018-10-04 11:18	BCP Software	Assigned To	=> BCP Software
2018-10-04 11:18	BCP Software	Status	assigned => resolved
2018-10-04 11:18	BCP Software	Resolution	open => fixed
2018-10-04 11:18	BCP Software	Fixed in Version	=> 9.4.1

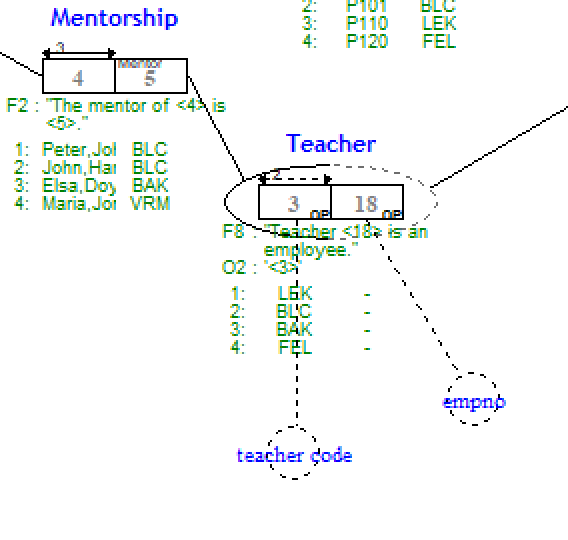

2018-10-04 14:39	BCP Software	File Added: 07.png
2018-10-11 12:18	BCP Software	Severity	tweak => feature
2022-01-10 20:32	BCP Software	Note Added: 0002281
2022-01-10 20:32	BCP Software	Status	resolved => closed

BCP Software 2018-10-04 14:39 administrator	07.png (27,761 bytes) 07.png (27,761 bytes)

BCP Software 2022-01-10 20:32 administrator ~0002281	Closing automatically, stayed too long in resolved state. Feel free to re-open with additional information if you think the issue is not resolved.
