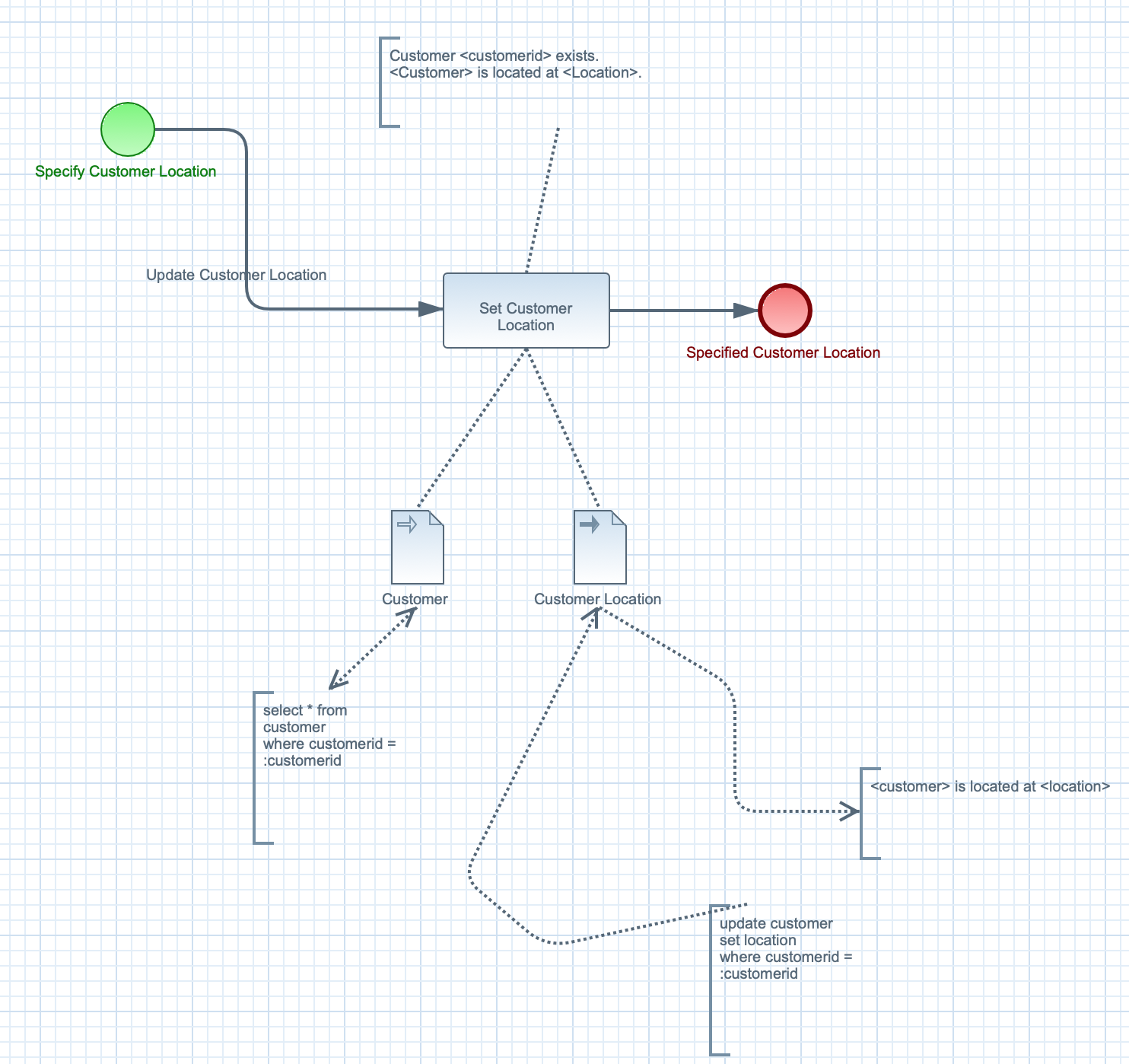

Using Eclipse Modeling Framework the attachments were created as an illustration how a BPMN file could be annotated with an XSD file for datatypes, Annotations to tasks and data items. This way CaseTalk may decorate existing BPMN files with more detailed definitions from a CaseTalk Model. |
|
|
Example files from a BPMN gathering, including the descriptions for Data Objects and -Stores. https://bpmtips.com/bpmn-miwg-demonstration-2018-nearly-everything-you-always-wanted-to-know-about-data-objects-but-were-afraid-to-ask/ |
