Example:
<?xml version="1.0" encoding="UTF-8"?>
<graphml xmlns="http://graphml.graphdrawing.org/xmlns"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://graphml.graphdrawing.org/xmlns
http://graphml.graphdrawing.org/xmlns/1.0/graphml.xsd">
<graph id="G" edgedefault="undirected">
<node id="n0"/>
<node id="n1"/>
<node id="n2"/>
<node id="n3"/>
<node id="n4"/>
<node id="n5"/>
<node id="n6"/>
<node id="n7"/>
<node id="n8"/>
<node id="n9"/>
<node id="n10"/>
<edge source="n0" target="n2"/>
<edge source="n1" target="n2"/>
<edge source="n2" target="n3"/>
<edge source="n3" target="n5"/>
<edge source="n3" target="n4"/>
<edge source="n4" target="n6"/>
<edge source="n6" target="n5"/>
<edge source="n5" target="n7"/>
<edge source="n6" target="n8"/>
<edge source="n8" target="n7"/>
<edge source="n8" target="n9"/>
<edge source="n8" target="n10"/>
</graph>
</graphml>
|
|
|
|
Example extended with data:
<?xml version="1.0" encoding="UTF-8"?>
<graphml xmlns="http://graphml.graphdrawing.org/xmlns"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://graphml.graphdrawing.org/xmlns
http://graphml.graphdrawing.org/xmlns/1.0/graphml.xsd">
<key id="d0" for="node" attr.name="color" attr.type="string">
<default>yellow</default>
</key>
<key id="d1" for="edge" attr.name="weight" attr.type="double"/>
<graph id="G" edgedefault="undirected">
<node id="n0">
<data key="d0">green</data>
</node>
<node id="n1"/>
<node id="n2">
<data key="d0">blue</data>
</node>
<node id="n3">
<data key="d0">red</data>
</node>
<node id="n4"/>
<node id="n5">
<data key="d0">turquoise</data>
</node>
<edge id="e0" source="n0" target="n2">
<data key="d1">1.0</data>
</edge>
<edge id="e1" source="n0" target="n1">
<data key="d1">1.0</data>
</edge>
<edge id="e2" source="n1" target="n3">
<data key="d1">2.0</data>
</edge>
<edge id="e3" source="n3" target="n2"/>
<edge id="e4" source="n2" target="n4"/>
<edge id="e5" source="n3" target="n5"/>
<edge id="e6" source="n5" target="n4">
<data key="d1">1.1</data>
</edge>
</graph>
</graphml>
|
|
|
|

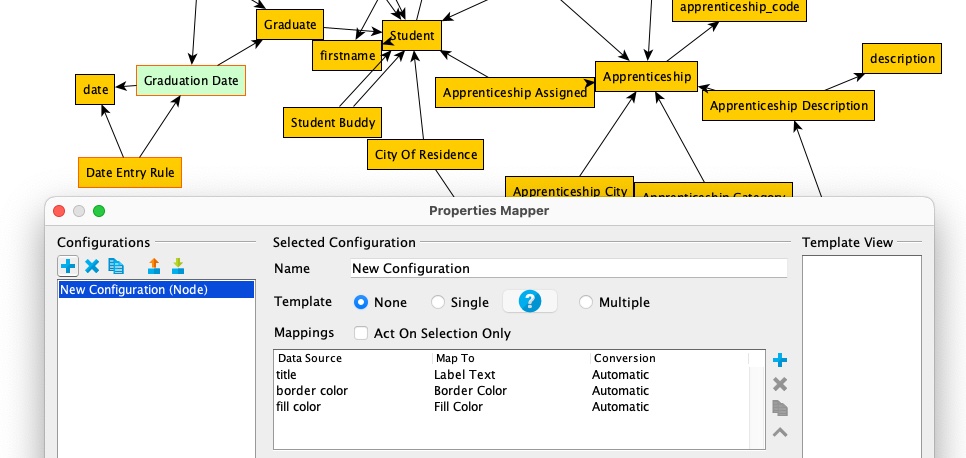

Opening the graph in yEd with a simple mapping shows the conceptual model instantly. |
|
