Modeler: Tutorial/Constraints
In this lesson you will learn how to add constraints to the information grammar using the Diagram Designer.
The constraints you are adding will not be applied to the population. As a result it is posible to add population that violates the constraints in the information grammar.
Adding uniqueness constraints (UC)
1. Open the Diagram.
2. Click on Student in the Diagram, then click on the UC button.
Notice the double arrow above role 1 and 2.
3. Repeat step 2 to add the uniqueness constraint to Apprenticeship.
4. Hold the Ctrl-key, and select role 3 and click the UC button.
Note: You may select multiple roles also using the multiple role button from the diagram toolbar.
5. Repeat step 4 to add the UC to role 14. After adding the UC, you must deselect that role before adding a new UC to another role.
6. Repeat step 4 to add the UC to role 15.
7. Repeat step 4 to add the UC to role 7.
8. Repeat step 4 to add the UC to role 9.
9. Hold the Ctrl-key, select both roles 11 and 12 and add the UC.
10. Repeat steps 8 and 9 to add the UC to role combination 11 + 13.

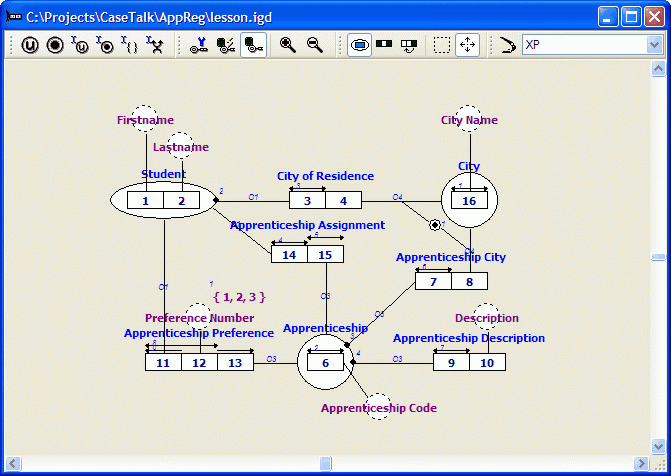

The UC's in your diagram should look like this:
Removing a uniqueness constraint
You can always remove a UC. Suppose the UC on role 15 is wrong.
1. Make sure the button select objects/facts is selected:
2. Right click on the role from which you want to remove the UC. In this case, right click on role 15.
3. In the pop up menu, select Task, Delete Constraint. If there are multiple constraints that can be removed, all are shown:
4. Click on the constrait you want to remove. In this case, the UC on Rol 15.
5. The UC on role 15 wasn’t wrong, so add the UC on role 15 again. (Or use Undo.)
Adding totality constraints
Step 17
1. Hold the Ctrl-key and select role 3, then select the menu 'Diagram\Constraint\TC'.
2. Repeat step 1 to add totality constraints to the seperate roles 7 and 9.
Removing and adding inter fact type constraints
Step 18
1. Select inter fact type totality constraint 1 (besides City).
2. Select Delete from it's popup-menu.
3. Hold the Ctrl-key and select both role 4 and 8.
4. Select the menu 'Diagram\Constraint\TC'.
Adding comment to constraints
Step 19
1. Select the fact type 'City of Residence'.
2. Select the menu 'Diagram\Constraint\Edit UC':
You can now enter your comment for the constraints related to 'City of Residence'.
This comment will be displayed in the Fact Type Documentation.
3. Close the window.
Note: In a similar way you can add comment to uniqueness constraints and value constraints.
Adding subset constraints
Step 19
1. Select the menu 'Diagram\Constraint\Edit SC':
2. Click New.
3. Open the left combobox and select role 15, then open the right combobox and select role 13 as is displayed above.
4. Click Ok.
Select Show Subset Constraint Info from the IGD menu:
A list of subset contraints will be displayed.
5. Open the Edit menu and select Undo SC Editor.
6. Select Hide from the popup-menu of the Subset Constraints Info box.
7. Save the project by selecting Save Project from the File menu.
